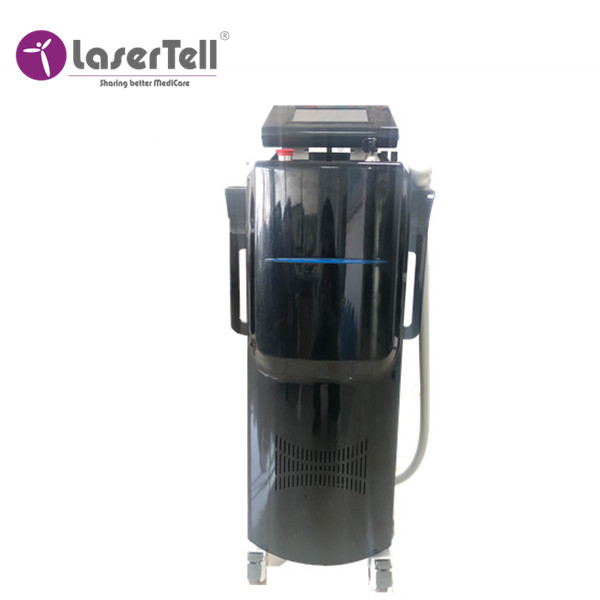

LaserTell Q-switch Nd Yag tatto removal machine

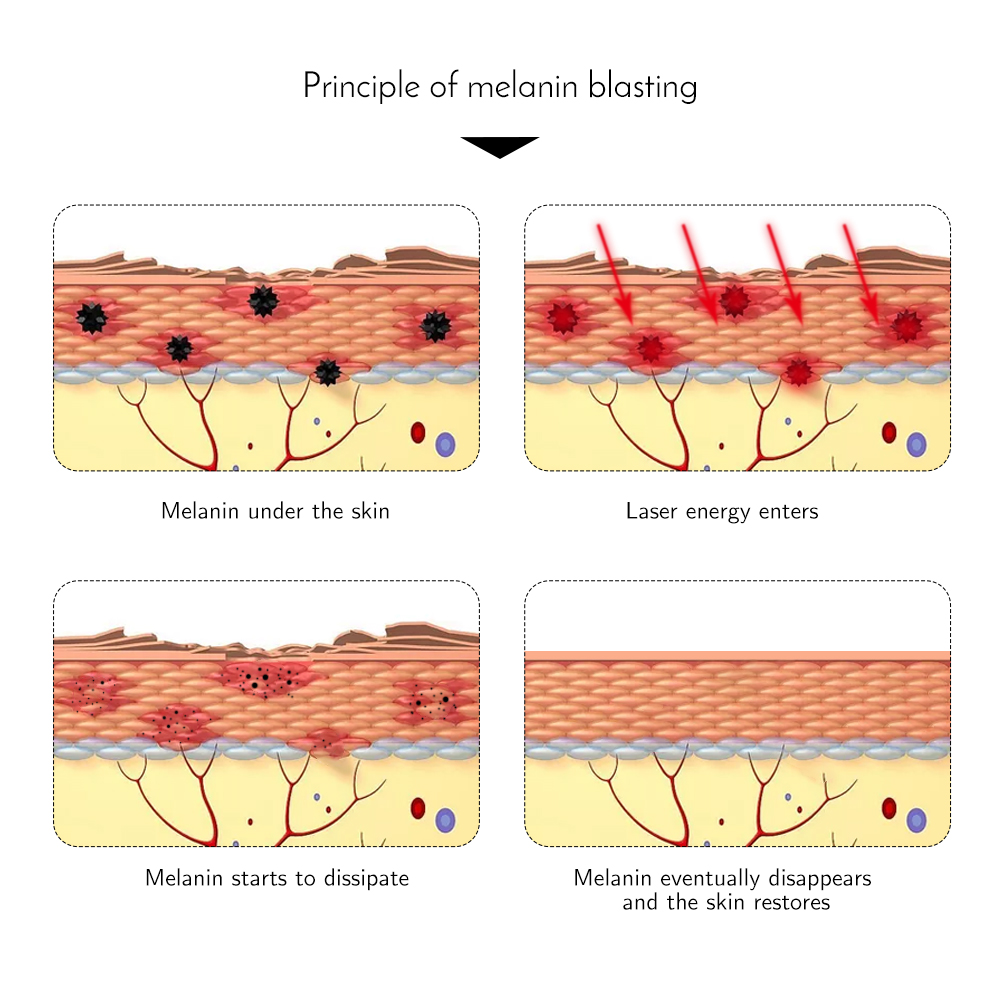

Q-switched Nd: YAG laser radiates the light with a specific wavelength in high peak energy pulses, hence the light penetrates into the tissue only for a nanosecond. The light is absorbed by the pigmentation and results in an instantaneous blast, that is Light blasting principle.The pigmentation particles are shattered into fragments, some can be bounced out of the skin and others can be split into tiny particles that can be engulfed by phagocytes and then eliminated by the lymphatic system.
O5 Q-switch Ng Yag Specification
|
|
Peak Power
|
800W
|
Wavelength (Spectrum)
|

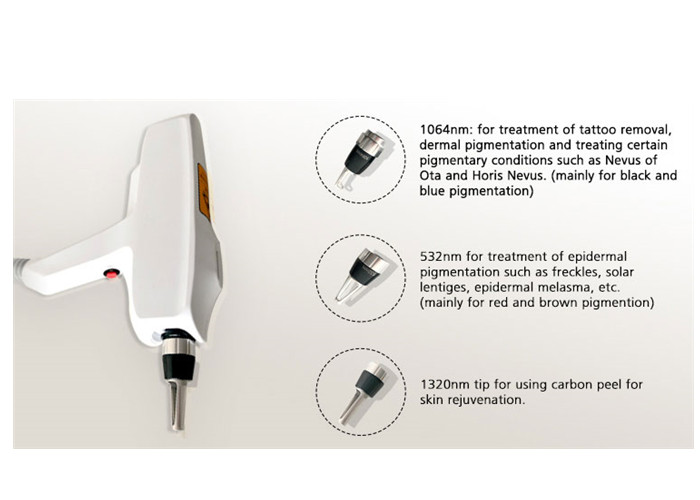

1064nm & 532nm (1320nm optional)
|
Energy Density (Fluence)
|
1-1000mJ
|
Spot Size
|
2-8mm
|
Pulse Repetition Rate
|
1-6Hz
|
Pulse Duration
|
<8ns
|
YAG Bar Size
|
Phai 6
|
Cooling
|
Air cooling
|
Stand-by Working
|
Closed water circulation cooling
|
Display
|
Continuously for 12 hours
|
Electrical Requirements
|
6″ True Color Screen
|
Power
|
110/230VAC, 15/20A max., 50/60Hz
|
