China IPL Lamp 300000 shots imported from UK for China machine Manufacturer and Supplier

IPL Lamp 300000 shots imported from UK for China machine

Short Description:

Send email to us Download as PDF

Product Detail

Overview

Quick Details

Place of Origin:: Germany

Brand Name:: LaserTell

Model Number:: NL

IPL+ RF:: yes

Type:: IPL

Certification:: CE ISO

Feature:: Acne Treatment, Anti-Puffiness, Blood Vessels Removal, Breast Enhancers, Dark Circles, Face Lift, Hair Removal, Pigment Removal, Pigmentation Correctors, Pore Remover, Skin Rejuvenation, Skin Tightening, Wrinkle Remover

Warranty:

2 Years

Keyword:

ipl lamp

Wavelength:

400-950nm

Product name:

IPL Xenon Lamp

Packaging & Delivery

Selling Units:: Single item

Single package size:: 20X6X6 cm

Single gross weight:: 5.000 kg

Package Type:: Aluminum Packing Box with EPE Foam

Lead Time :

Quantity(Sets)	1 – 10	>10
Est. Time(days)	5	To be negotiated

Product Description

Advantages:

1) Design consultancy with our product experts

2) Customized prototype design and quotation completed within 5 days

3) Lamp to lamp consistency
4) High standards of manufacturing
5) Long lifetime (300,000~1 million shots)
6) Patented cathode design

Technical Specification

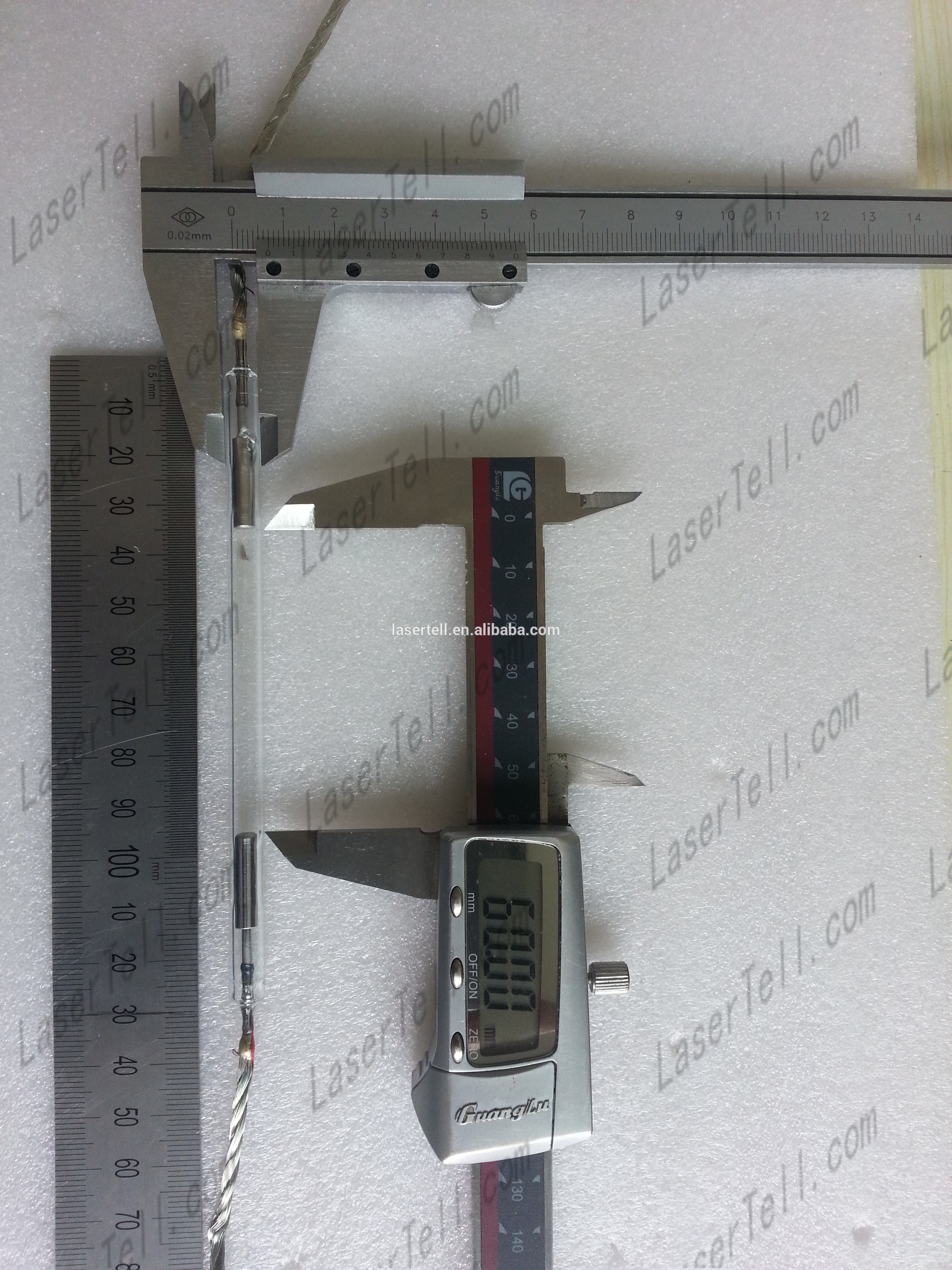

Dimension parameters

Lamp's bore (ID)=5mm
Lamp's Outside dia.(OD) =7mm
Lamp's Arc length (AL) =60±1.5mm
Lamp's Body length(BL) =120±2mm
O-ring centre (OC) =104mm
Pole dia. (PD) =2mm
Overall length (OAL)=480mm
wire length (WL) = 180mm

Technical Parameters

maximum average

power=1,886W
maximum peak current =800A
operating voltage = 1,750V(max)
operating voltage =500V(min)
minimum trigger voltage =16KV
minimum trigger pulse=0.6μs
impedance constant= 15.84 Ko(Ω.A)
explosion energy constant = 73,680 (W./S)

Treatment

Certifications

Detailed Images

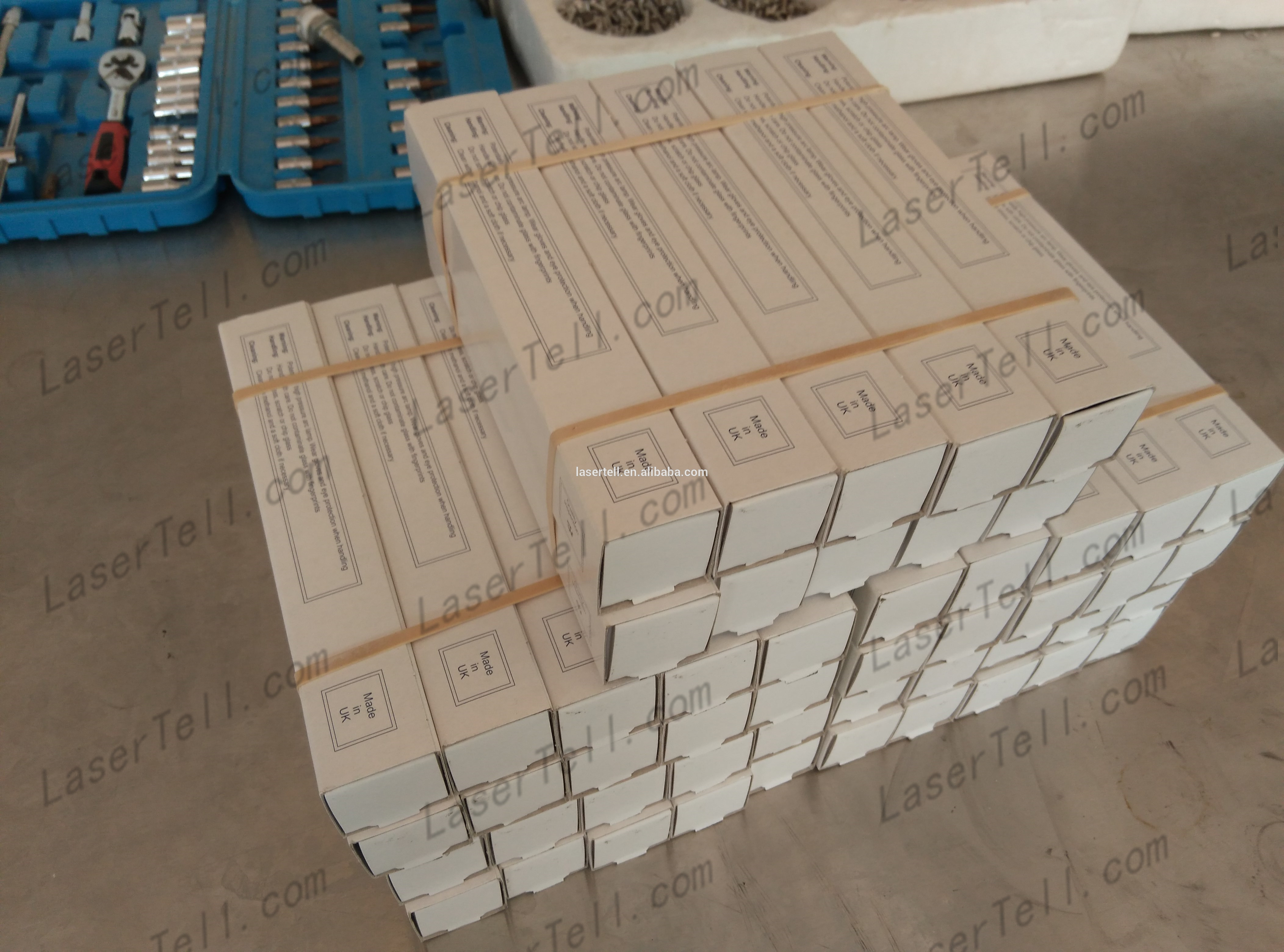

Packing & Delivery

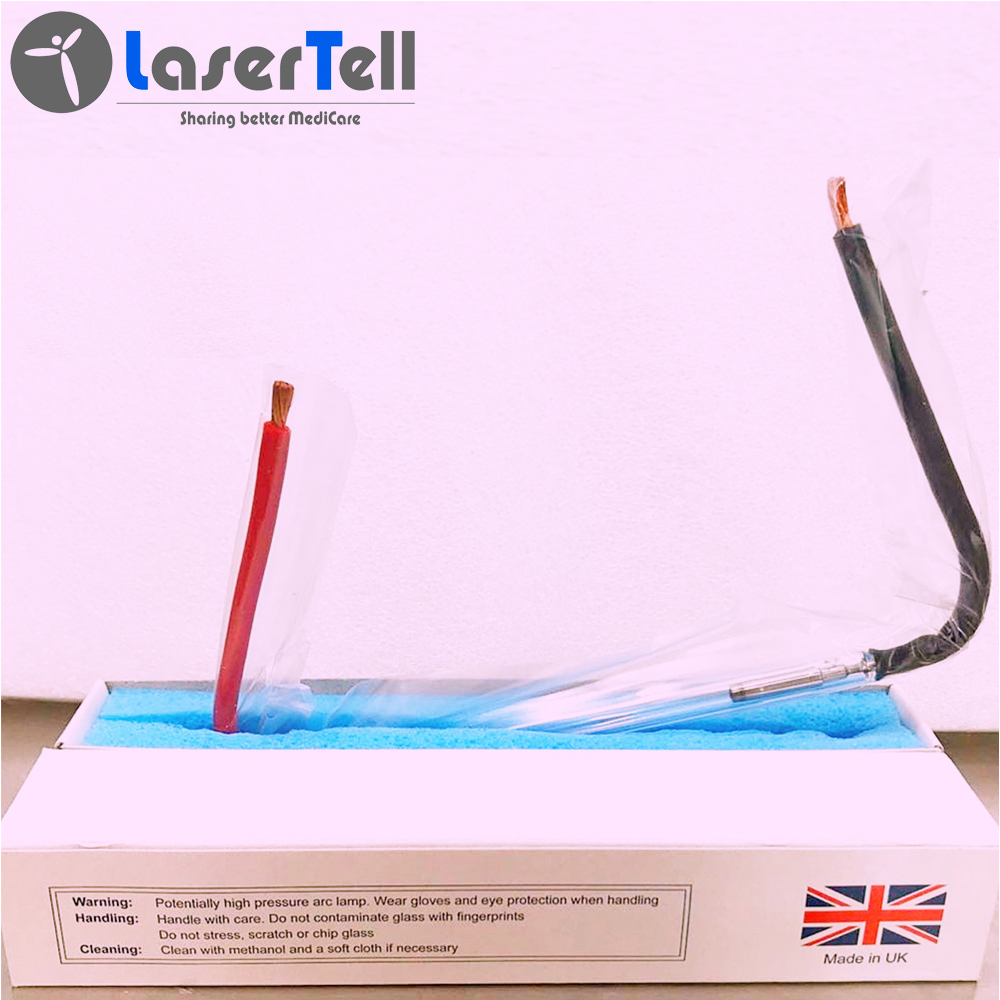

Packaging
Packaging	Aluminium Package
Delivery	within 5 Working Days
Packaging Details	The normal package is Aluminium Box with EPE Foam. If export to remote countries, the wooden box will be added as well. All parts packaged available according to customers special request.

Company Profile

Beijing LaserTell Medical Co., Ltd. in 2010.For years, we combine a level of innovation , expertise and customer understanding superior to that of any company in our industry.Now Beijing LaserTell is developing the full set of aesthetic lasers in the field, such as 808nm/980nm Diode Laser, CO2 Fractional Laser, IPl, SHR, E-light(IPL+RF), 755nm Alexandrite Laser, 1064nm Long Pulsed Laser, etc.Warranty & After-sale Service & Training 3 years warranty available (2 + 1) ex factory under normal and proper operation; free labor and material but without consumables parts.
