China ipl and shr xenon lamp Manufacturer and Supplier

ipl and shr xenon lamp

Short Description:

Product Detail

Picture Example:

Lead Time :

Quantity(Sets)	1 – 10	>10
Est. Time(days)	3	To be negotiated

Product Description

Advantages:

1)Design consultancy with our product experts.

2) Customized prototype design and quotation. completed within 5 days

3) Lamp to lamp consistency.
4) High standards of manufacturing.
5) Long lifetime (300,000~1 million shots)
6) Patented cathode design.

Parameter

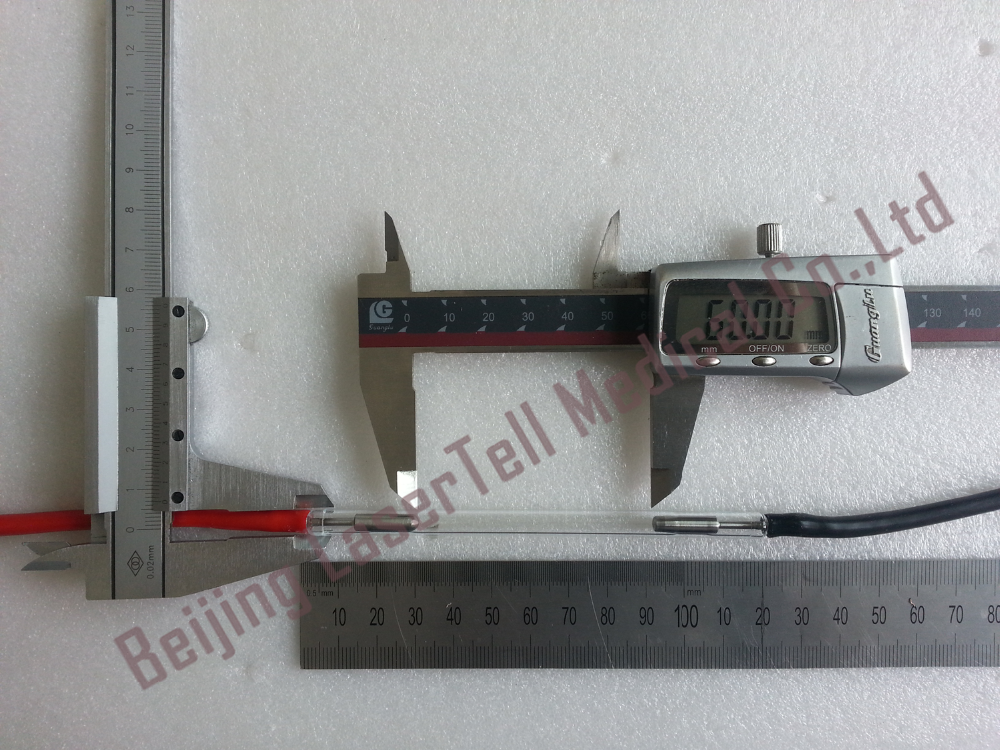

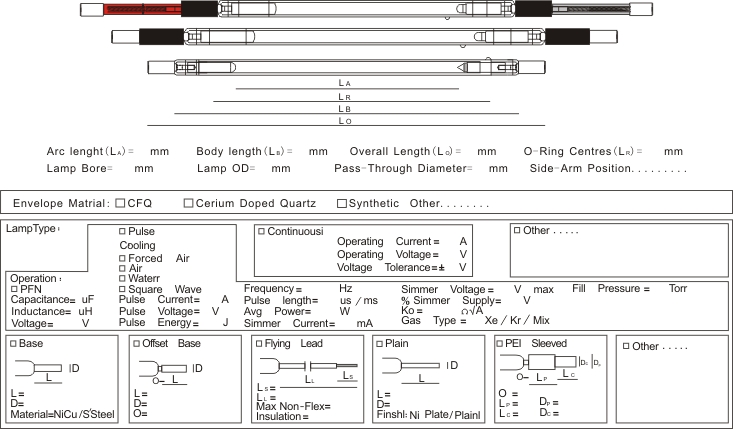

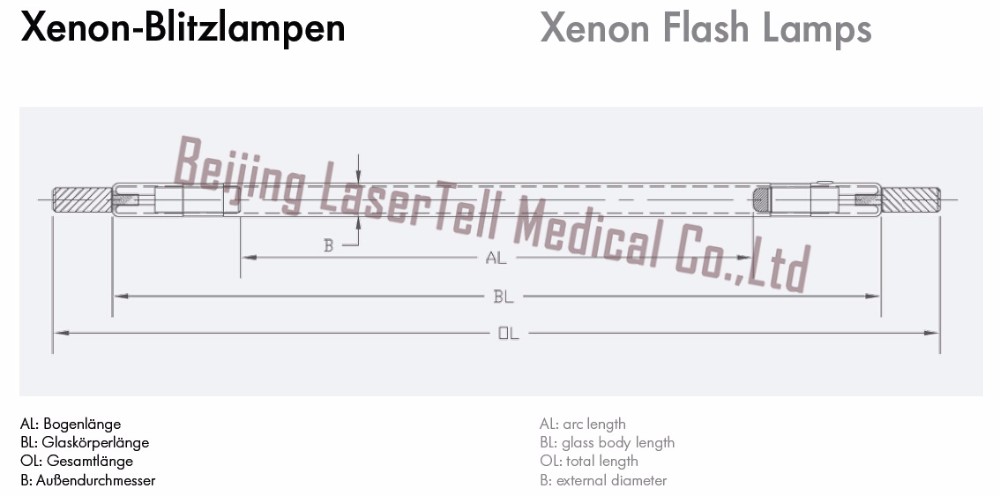

Dimension parameters

Lamp’s bore (ID)=5mm
Lamp’s Outside dia.(OD) =7mm
Lamp’s Arc length (AL) =60±1.5mm
Lamp’s Body length(BL) =120±2mm
O-ring centre (OC) =104mm
Pole dia. (PD) =2mm
Overall length (OAL)=480mm
wire length (WL) = 180mm

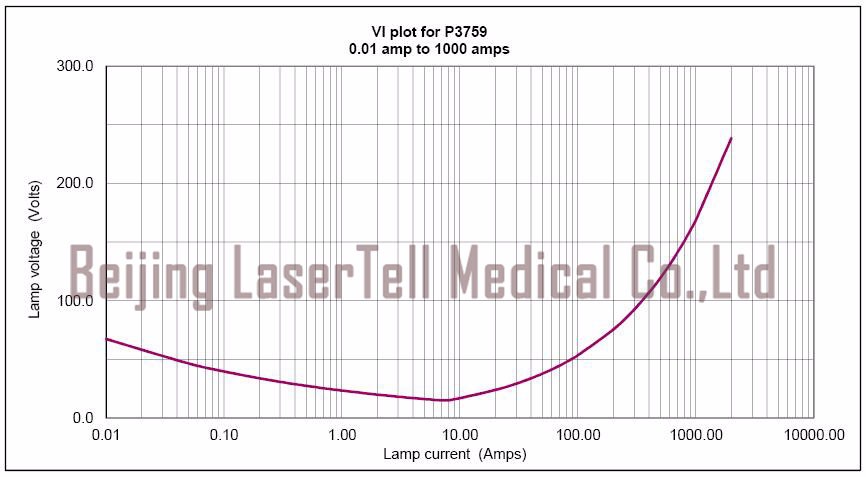

Technical Parameters

maximum average power=1,886W
maximum peak current =800A
operating voltage = 1,750V(max)
operating voltage =500V(min)
minimum trigger voltage =16KV
minimum trigger pulse=0.6μs
impedance constant= 15.84 Ko(Ω.A)
explosion energy constant = 73,680 (W./S)

Before & After

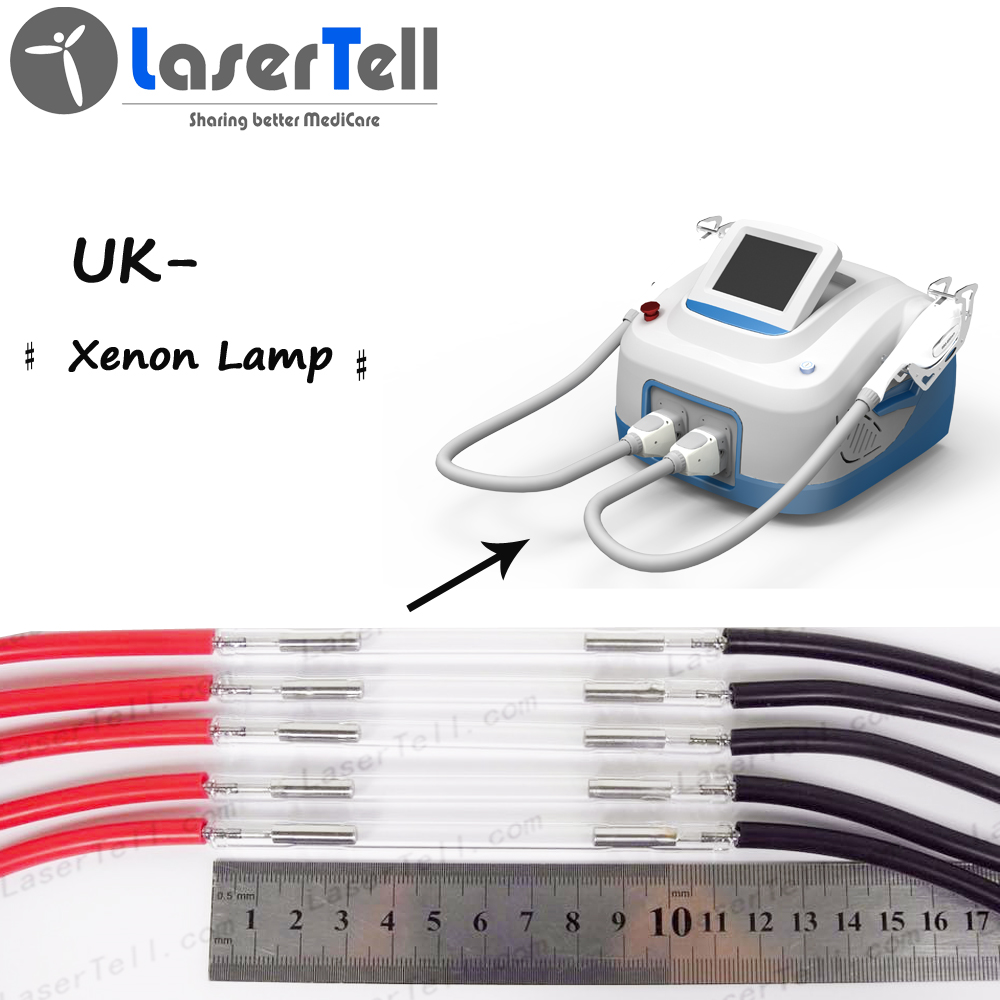

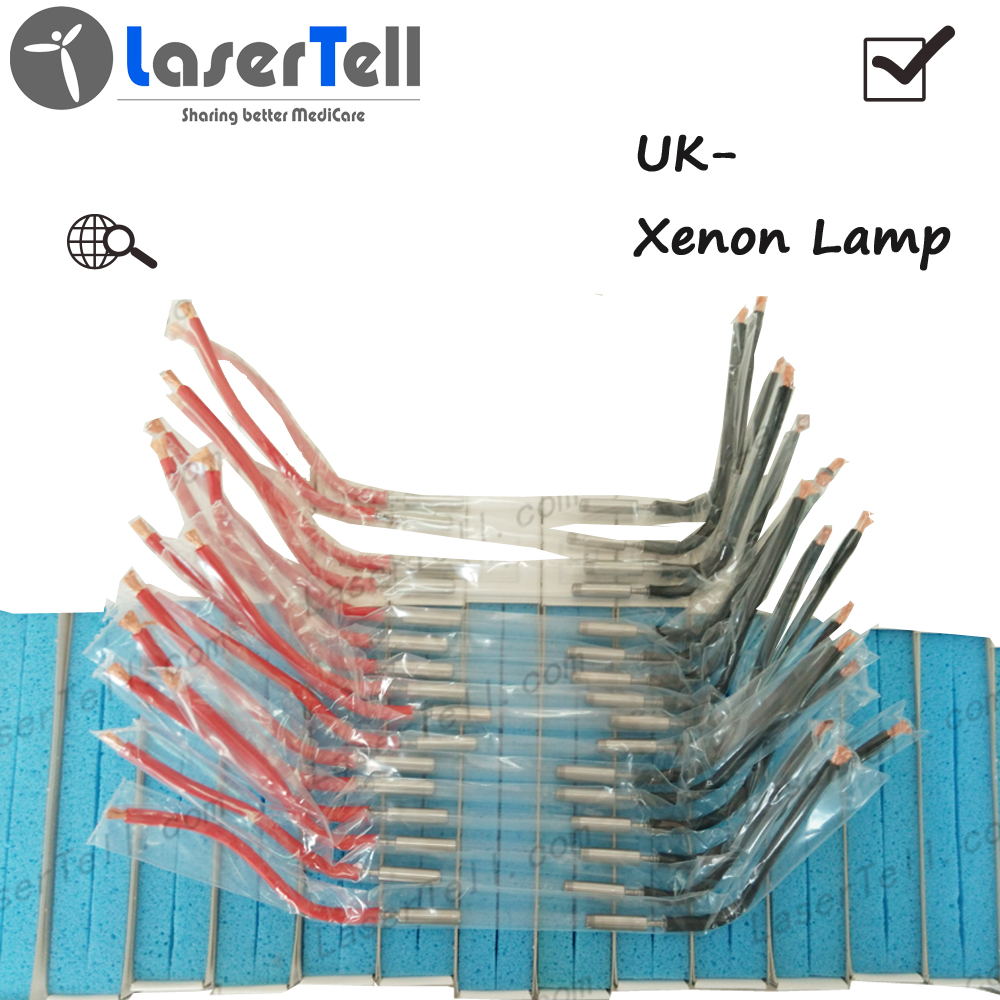

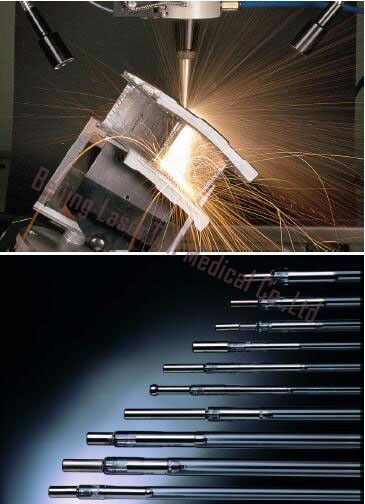

Detailed Images

Certifications

Packing & Delivery

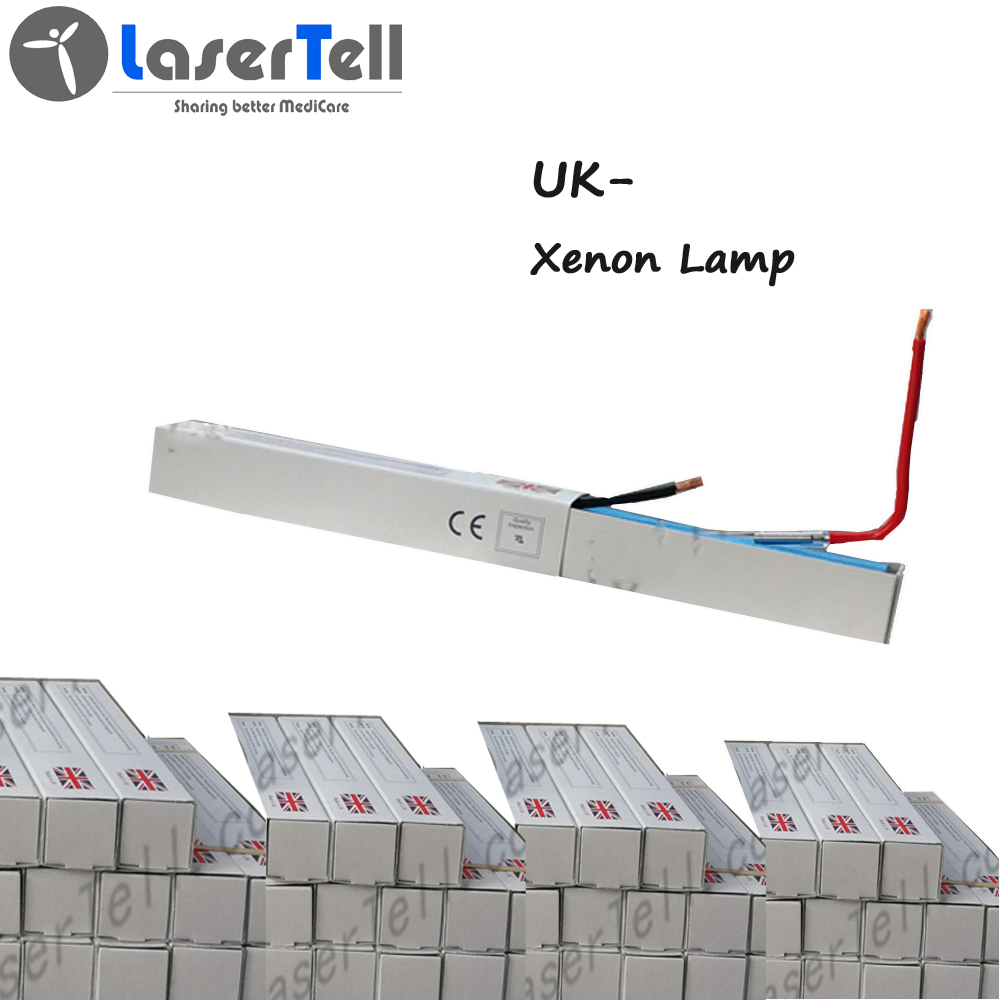

Packaging
Packaging	Aluminium Package
Delivery	Within 5 Working Days
Packaging Details	The normal package is Aluminium Box with EPE Foam. If export to remote countries, the wooden box will be added as well. All parts packaged available according to customers special request.
