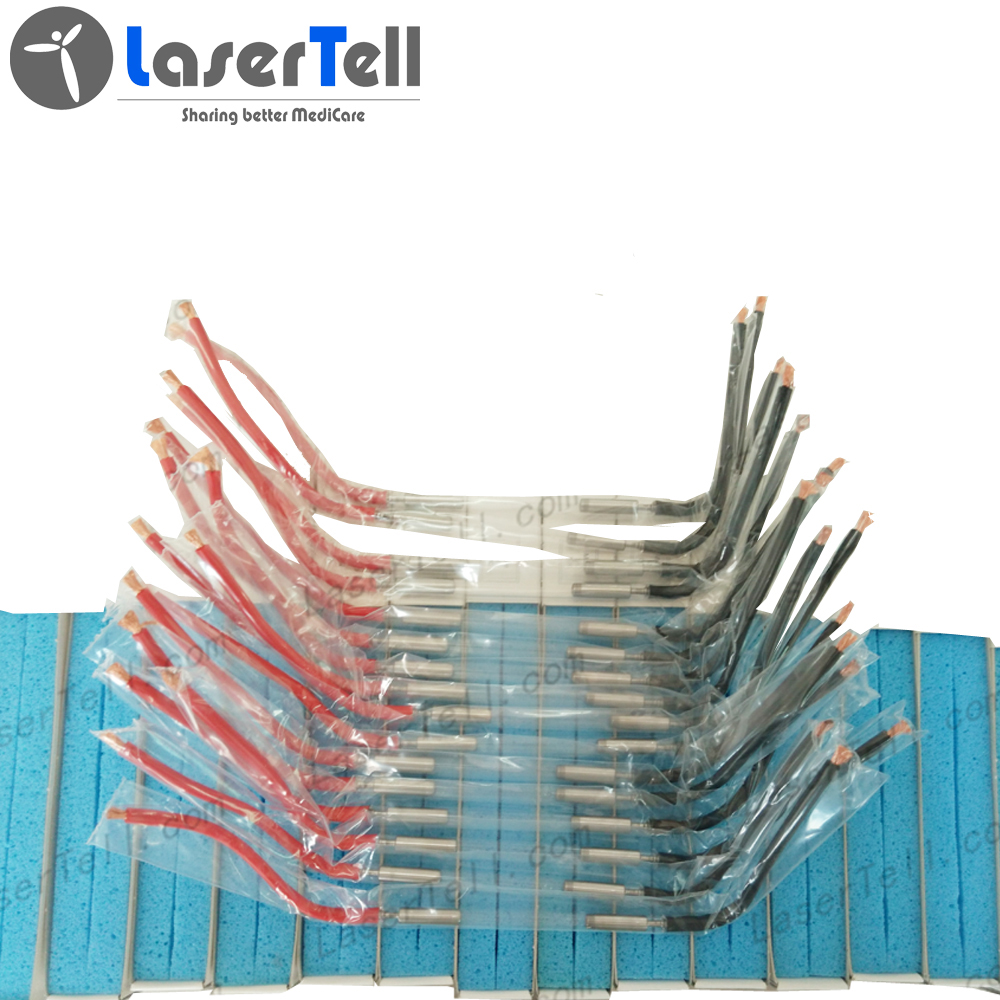

laser lamp for every kind ipl shr opt laser machine
- Lead Time :
-
Quantity(Sets) 1 – 10 >10 Est. Time(days) 3 To be negotiated
Advantages:
1)Design consultancy with our product experts.
2) Customized prototype design and quotation. completed within 5 days
4) High standards of manufacturing.
5) Long lifetime (300,000~1 million shots)
6) Patented cathode design.
Dimension parameters
Lamp’s bore (ID)=5mm
Lamp’s Outside dia.(OD) =7mm
Lamp’s Arc length (AL) =60±1.5mm
Lamp’s Body length(BL) =120±2mm
O-ring centre (OC) =104mm
Pole dia. (PD) =2mm
Overall length (OAL)=480mm
wire length (WL) = 180mm
Technical Parameters
maximum average power=1,886W
maximum peak current =800A
operating voltage = 1,750V(max)
operating voltage =500V(min)
minimum trigger voltage =16KV
minimum trigger pulse=0.6μs
impedance constant= 15.84 Ko(Ω.A)
explosion energy constant = 73,680 (W./S)
|
Packaging
|
||
|
Packaging
|
Aluminium Package
|
|
|
Delivery
|
Within 5 Working Days
|
|
|
Packaging Details
|
The normal package is Aluminium Box with EPE Foam.
If export to remote countries, the wooden box will be added as well.
All parts packaged available according to customers special request.
|
|
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 24 hours + 7 days after-sale service and technical supports
* Lifelong Service (no matter 3 years or 5 years, or more…)
